Getting Started

The HTTP API allows you to control the camera using a browser like Microsoft Edge or Google Chrome. You can adjust multiple settings simultaneously. This feature is documented in the CM70/CM90 series manual and also available for download from the product website.

  • Ensure the camera is powered on and connected to the same network as your computer.
  • Default IP address format: 192.168.x.xxx. Find your camera's IP under Network > Ethernet > IP Address.
  • Use a browser that supports HTTP GET (e.g., Chrome, Edge).
  • Use straight quotation marks ("), not curly quotes.
  • All API requests should follow proper URL encoding format (e.g., " becomes %22).

How to Use HTTP API

All codes in the HTTP API code list are clickable. Do NOT left-click them directly.

Step-by-Step Instructions

  1. Right-click the desired code and select "Copy link".
  2. Paste the copied link into your browser. Encoded characters like %22 for quotes are normal.
  3. Replace the IP address with your camera’s actual IP (check via Network > Ethernet > IP Address).
  4. Modify the parameters in the link according to your needs.
  5. Press ENTER. If successful, a result will appear in your browser.

Copy HTTP API link from code listPaste link in browserEdit parameters in browserSuccessful HTTP API resultFailed HTTP API result

Troubleshooting

  • Check for syntax errors and ensure parameters are within valid ranges (e.g., SRT: 0-32).
  • Remove unnecessary spaces. Use "code" instead of " code ".
  • Confirm you are using the correct IP address of the camera.

Curl

Settings can also be changed using the Windows Command Prompt and curl.

Instructions

  1. Open Notepad from the Start menu.
  2. Paste an HTTP link from the HTTP API code list.
  3. Modify the command to use curl and add --data-raw.
  4. Wrap the full command in quotation marks and double the internal quotes.
  5. Edit parameters like EmAFmode and nChannel.
  6. Open CMD, paste the command, and press ENTER.

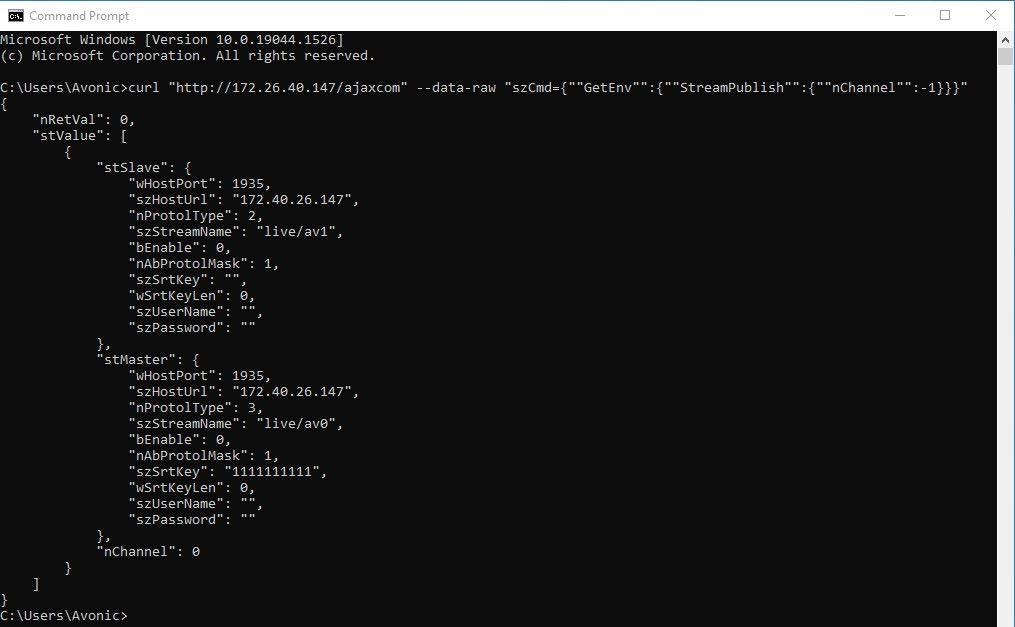

Curl command structure in NotepadCurl response in CMD

{"GetEnv"}

You can retrieve the camera's current settings using {"GetEnv"} commands in your browser or Command Prompt.

GetEnv result in browserGetEnv result in Command Prompt

Postman

HTTP API commands can be executed via:

  • Browser GET requests
  • Command-line POST requests using curl
  • API-testing tools like Postman or Insomnia

Example: Pan Left via Browser

To send a Pan Left command to a camera at IP 172.26.40.26 with speed 50:

http://172.26.40.26/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"left_start","byValue":50}}}

Correct Quotation Encoding

Use straight quotes (", ASCII 22 encoded as %22), not curly quotes:

http://172.26.40.26/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"left_start","byValue":50}}}

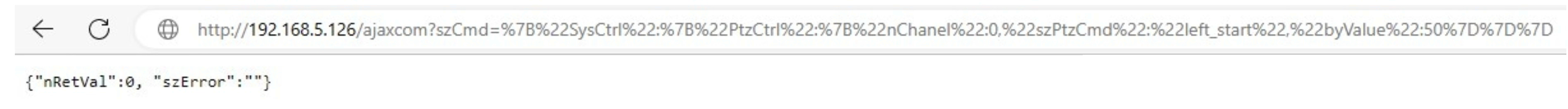

Expected HTTP API Response

The camera responds with JSON like:

Example of HTTP API JSON response

Example: Pan Left via cURL

Use the following command structure in CMD:

curl "http://172.26.40.26/ajaxcom" --data-raw "szCmd={""SysCtrl"":{""PtzCtrl"":{""nChanel"":0,""szPtzCmd"":""left_start"",""byValue"":50}}}"

cURL command example for HTTP API

HTTP API code list

  PTZ Control Commands

  Command    Values    Notes    Sample
 left_start  byValue: 0-100  Used to control the speed of PTZ  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"left_start","byValue":50}}}
 left_stop
 Stops PTZ movement to the left  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"left_stop"}}}
 leftup_start  byValue: 0-100  Starts PTZ movement to the upper left  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"leftup_start","byValue":50}}}
 leftup_stop
 Stops PTZ movement to the upper left  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"leftup_stop"}}}
 leftdown_start  byValue: 0-100  Starts PTZ movement to the lower left  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"leftdown_start","byValue":50}}}
 leftdown_stop
 Stops PTZ movement to the lower left  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"leftdown_stop"}}}
 right_start  byValue: 0-100  Starts PTZ movement to the right  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"right_start","byValue":50}}}
 right_stop
 Stops PTZ movement to the right  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"right_stop"}}}
 rightup_start  byValue: 0-100  Starts PTZ movement to the upper right  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"rightup_start","byValue":50}}}
 rightup_stop
 Stops PTZ movement to the upper right  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"rightup_stop"}}}
 rightdown_start  byValue: 0-100  Starts PTZ movement to the lower right  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"rightdown_start","byValue":50}}}
 rightdown_stop
 Stops PTZ movement to the lower right  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"rightdown_stop"}}}
 up_start  byValue: 0-100  Starts PTZ movement upwards  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"up_start","byValue":50}}}
 up_stop
 Stops PTZ movement upwards  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"up_stop"}}}
 down_start
 byValue: 0-100 		 Starts PTZ movement downwards  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"down_start","byValue":50}}}
 down_stop
 Stops PTZ movement downwards  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"down_stop"}}}
 nPTZSpeed  0: Slow
 1: High 		 Sets the PTZ speed  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"PTZSpeed":{"nPTZSpeed":1}}}
 bSpeedByZoom  1: on
 0: off 		 Controls PTZ speed by zoom level  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"ArmPtz":{"bSpeedByZoom":0}}}
 nZoomSpeed  0 - 7  Sets zoom speed  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"ArmPtz":{"nZoomSpeed":0}}}
 nPresetPanSpeed  0 - 24  Sets preset pan speed  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"ArmPtz":{"nPresetPanSpeed":0}}}
 nPresetTiltSpeed  0 - 20  Sets preset tilt speed  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"ArmPtz":{"nPresetTiltSpeed":0}}}
 nPresetZoomSpeed  0 - 7  Sets preset zoom speed  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"ArmPtz":{"nPresetZoomSpeed":0}}}

  Focus & zoom Commands

  Command    Values    Notes    Sample
 zoomadd_start  byValue: 0-254  Starts zooming in  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"zoomadd_start","byValue":0}}}
 zoomadd_stop  byValue: 0  Stops zooming in  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"zoomadd_stop","byValue":0}}}
 zoomdec_start  byValue: 0-254  Starts zooming out  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"zoomdec_start","byValue":0}}}
 zoomdec_stop  byValue: 0  Stops zooming out  http://192.168..5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"zoomdec_stop","byValue":0}}}
 focusadd_start  byValue: 0-254  Starts focusing nearer  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"focusadd_start","byValue":0}}}
 focusadd_stop  byValue: 0  Stops focusing nearer  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"focusadd_stop","byValue":0}}}
 focusdec_start
 byValue: 0-254 		 Starts focusing farther  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"focusdec_start","byValue":0}}}
 focusdec_stop  byValue: 0 Stops focusing farther  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"focusdec_stop","byValue":0}}}
 emAFMode  2: Auto
3: Manual
 4: OnePush 		 Sets the focus mode  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stAF":{"emAFMode":3},"nChannel":0}]}}
 emAFZone

 0: Front Focus
 1: Back Focus

 2: Meeting

 3: Moving Objects

 4: Center Focus

 Sets the AF focus zone

 http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stAF":{"emAFZone":1},"nChannel":0}]}}

 nSensitivity

 1: High

 2: Middle

 3: Low

 Sets the AF sensitivity

 http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stAF":{"nSensitivity":1},"nChannel":0}]}}

  Preset Commands

  Command    Values    Notes    Sample
 preset_set
 byValue: 0-254 		 Sets a preset position  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"preset_set","byValue":0}}}
 preset_call  byValue: 0-254  Calls a preset position  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"preset_call","byValue":0}}}
 preset_clean  byValue: 0-254  Cleans a preset position  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"PtzCtrl":{"nChanel":0,"szPtzCmd":"preset_clean","byValue":0}}}

  Audio Settings

  Command    Values    Notes    Sample
 bEnable  0: off
 1: on 		 Enables or disables audio  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"Audio":{"bEnable":1}}}
 nAEncType  6: Mp3AAC
 7: G.711A 		 Sets the audio encoding type  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"Audio":{"nAEncType":7}}}
 nSampleRate  16000
32000
44100
 48000 		 Sets the audio sample rate  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"Audio":{"nSampleRate":44100}}}
 nSampleBits  16  Sets the audio sample bits  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"Audio":{"nSampleBits":16}}}
 nBitRate  32
48
64
96
 128 		 Sets the audio bit rate  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"Audio":{"nBitRate":96}}}
 nChannel  1: Mono
 2: Stereo 		 Sets the audio channel mode  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"Audio":{"nChannel":2}}}
 nInpVolume  1-10  Sets the input volume level  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"Audio":{"nInpVolume":5}}}

  Video Encoder Settings

  Command    Values    Notes    Sample
 emVideoCodec  5: H.264
 7: H.265 (BP profile only) 		 Sets the video compression format  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoEncode":[{"stMaster":{"emVideoCodec":5},"nChannel":0}]}}
 byProfile  0: BP
1: MP
 2: HP 		 Sets the video profile  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoEncode":[{"stMaster":{"byProfile":0},"nChannel":0}]}}
 emImageSize  5: 1920x1080
4: 1280x720
9: 640x480
27: 320x180
 26: 640x360 		 Sets the video image size  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoEncode":[{"stMaster":{"emImageSize":4},"nChannel":0}]}}
 emBitRateCtrl  0: CBR
 1: VBR 		 Sets the video bitrate control mode  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoEncode":[{"stMaster":{"emBitRateCtrl":1},"nChannel":0}]}}
 byImageQuality  0: worst quality
1: between
2: between
3: between
4: between
 5: Best quality 		 Sets the image quality level  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoEncode":[{"stMaster":{"byImageQuality":5},"nChannel":0}]}}
 dwMaxBitRate  [64 - 40960]  Sets the maximum bit rate  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoEncode":[{"stMaster":{"dwMaxBitRate":200},"nChannel":0}]}}
 nFrameRate  [5 - 60]  Sets the frame rate  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoEncode":[{"stMaster":{"nFrameRate":25},"nChannel":0}]}}
 nIFrameInterval  [1 - 300]  Sets the interval between I-frames  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoEncode":[{"stMaster":{"nIFrameInterval":70},"nChannel":0}]}}
 byIFrameMinQP  [10 - 51]  Sets the minimum QP for I-frames  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoEncode":[{"stMaster":{"byIFrameMinQP":70},"nChannel":0}]}}
 szStreamName  user-defined  Sets the stream name  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoEncode":[{"stMaster":{"szStreamName":"live/av01"},"nChannel":0}]}}

  Video Streaming

  Command    Values    Notes    Sample
 Get Stream Publish Parameters  nChannel: -1  Retrieves the stream publish parameters  http://192.168.5.126/ajaxcom?szCmd={"GetEnv":{"StreamPublish":{"nChannel":-1}}}
 -  See below  Set all Stream Publish Parameters in one go http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"StreamPublish":[{"stSlave": {"wHostPort":1935,"szHostUrl":"192.168.5.11", "nProtolType":2,szStreamName":"live/ av1","bEnable":0,"nAbProtolMask":1,"szSrtKey":"","wSrtKeyLen":0,"szUserName":"","szPassword":""},”stMaster”: {"wHostPort":1935, "szHostUrl":"192.168.5.11",”nProtolType":3,"szStreamName":"live/av0","bEnable":0, "nAbProtolMask":1,"szSrtKey":"1111111111","wSrtKeyLen":0,"szUserName":"", "szPassword":""},"nChannel":0}]}}
  bEnable   0: off
 1: on 		 Enables or disables the stream  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"StreamPublish":[{"stMaster":{"wHostPort":1935,"bEnable":1,"nProtolType":3},"nChannel":0}]}}
 nProtolType: 2: SRT
 3: RTMP 		 Sets the protocol type for the stream  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"StreamPublish":[{"stMaster":{"wHostPort":1935,"nProtolType":3},"nChannel":0}]}}
  szHostUrl   user-defined  Sets the host address for the stream  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"StreamPublish":[{"stMaster":{"wHostPort":1935,"nProtolType":3,"szHostUrl":"192.168.5.12"},"nChannel":0}]}}
  wHostPort   [0-65535]  Sets the host port for the stream  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"StreamPublish":[{"stMaster":{"wHostPort":1935,"nProtolType":3},"nChannel":0}]}}
  szStreamName   user-defined  Sets the stream name  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"StreamPublish":[{"stMaster":{"wHostPort":1935,"nProtolType":3,"szStreamName":"live/1213"},"nChannel":0}]}}
  szUserName   user-defined  Sets the user name for the stream  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"StreamPublish":[{"stMaster":{"wHostPort":1935,"nProtolType":3,"szUserName":"123"},"nChannel":0}]}}
   szPassword    user-defined  Sets the password for the stream  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"StreamPublish":[{"stMaster":{"wHostPort":1935,"nProtolType":3,"szPassword":"123"},"nChannel":0}]}}
  szSrtKey   user-defined  Sets the SRT key for the stream  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"StreamPublish":[{"stMaster":{"wHostPort":1935,"nProtolType":3,"szSrtKey":"0123456789"},"nChannel":0}]}}
  wSrtKeyLen   [0-32]  Sets the SRT key length  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"StreamPublish":[{"stMaster":{"wHostPort":1935,"nProtolType":3,"wSrtKeyLen":"0"},"nChannel":0}]}}
  RTP Multicast streaming
  Command    Values    Notes    Sample
 Get RTP Multicast Parameters  nChannel: -1  Retrieves the RTP multicast parameters  http://192.168.5.126/ajaxcom?szCmd={"GetEnv":{"StreamRTPMulticast":{"nChannel":-1}}}
 -  See below
 Set RTP Multicast Parameters in one go 		 http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"StreamRTPMulticast":[{"stMaster":{"nProtolType":1,"bEnable":0,"wMultiCastPort":4000,"szMultiCastUrl":"224.1.2.3"},"stSlave":{"nProtolType":0,"bEnable":0,"wMultiCastPort":4002,"szMultiCastUrl":"224.1.2.3"},"nChannel":0}]}}
  bEnable   0: off
 1: on 		 Enables or disables RTP multicast  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"StreamRTPMulticast":[{"stMaster":{"bEnable":1,"wMultiCastPort":4004},"nChannel":0}]}}
  nProtolType   0: RTP
 1: TS 		 Sets the protocol type for the multicast  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"StreamRTPMulticast":[{"stMaster":{"nProtolType":1,"bEnable":1,"wMultiCastPort":4004},"nChannel":0}]}}
  szMultiCastUrl   224.0.0.0 - 255.255.255.0  Sets the multicast address  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"StreamRTPMulticast":[{"stMaster":{"szMultiCastUrl":"224.1.2.23","bEnable":0,"wMultiCastPort":4004},"nChannel":0}]}}
  wMultiCastPort   [0-65535]  Sets the multicast port  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"StreamRTPMulticast":[{"stMaster":{"wMultiCastPort":4004,"bEnable":1},"nChannel":0}]}}
  SRT Streaming
  Command    Values    Notes    Sample
 GET  See below  Gets the parameters of the SRT settings  http://192.168.5.126/ajaxcom?szCmd={"GetEnv":{"NetWork":{"nChannel":-1}}}
 wSrtLen  [0-32] crypto key length in bytes

 http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stSrt":{"wSrtLen":0,"wSrtPort":9000,"szSrtPin":"xxxxxxxxxx"}}}}

 wSrtPort Default 9000 SRT Port

 http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stSrt":{"wSrtLen":0,"wSrtPort":9000,"szSrtPin":"xxxxxxxxxx"}}}}

 szSrtPin user-defined Encryption password

 http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stSrt":{"wSrtLen":0,"wSrtPort":9000,"szSrtPin":"xxxxxxxxxx"}}}}

  Exposure Settings
  Command    Values    Notes    Sample
 GET  -  Get the video parameters

 http://192.168.5.126/ajaxcom?szCmd={"GetEnv":{"VideoParam":{"nChannel":-1}}}

 emExpMode  0: Auto
3: Manual
10: SAE
11: AAE
13: Bright		 Sets the exposure mode  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stExp":{"stExpMode":{"emExpMode":0}},"nChannel":0}]}}
 expcomp_mode  2: On
 3: Off 		 Sets the exposure compensation mode

 http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stExp":{"expcomp_mode":2},"nChannel":0}]}}

 expcomp  [0-14]  Sets the exposure compensation  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stExp":{"expcomp":8},"nChannel":0}]}}
 backlight  1: ON
 0: OFF 		 Sets backlight compensation  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stExp":{"backlight":1},"nChannel":0}]}}
 antiflicker  0: OFF
1: 50HZ
 2: 60HZ 		 Sets antiflicker mode  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stExp":{"antiflicker":0},"nChannel":0}]}}
 gainLimit  [0-15]  Sets the gain limit  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stExp":{"gainLimit":5},"nChannel":0}]}}
 nShutter  [0-16]  Sets the shutter speed  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stExp":{"stShutter":{"nShutter":16}},"nChannel":0}]}}
 nIris  [0-12]  Sets the iris level  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stExp":{"stIris":{"nIris":12}},"nChannel":0}]}}
 drc  [0-8]  Sets the Dynamic Range Compression

 http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stExp": {"drc":6},"nChannel":0}]}}



 bright [0-23]  Set the brightness level

 http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stExp": {"bright":0},"nChannel":0}]}}

  Color Settings
  Command    Values    Notes    Sample
 emWbMode

 0:   Auto

 1:   3000K

 7:   3500K

 2:   4000K

 8:   4500K

 4:   5000K

 9:   5500K

 10:   6000K

 6:   6500K

 11: 7000K
5: Manual
 3: OnePush

 Sets the white balance mode  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stColor":{"stWbMode":{"emWbMode":0}},"nChannel":0}]}}
 rgaintuning  [0-20]  Sets the red gain tuning  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stColor":{"rgaintuning":0},"nChannel":0}]}}
 bgaintuning  [0-20]  Sets the blue gain tuning  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stColor":{"bgaintuning":20},"nChannel":0}]}}
 saturation  [0-14]  Sets the saturation level  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stColor":{"saturation":0},"nChannel":0}]}}
 hue  [0-14]  Sets the hue level  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stColor":{"hue":14},"nChannel":0}]}}
 awbsens 0: Low
1: Middle
 2: High 		 Set the Auto-White Balance sensitivity

 http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stColor":{"awbsens":0},"nChannel":0}]}}

 nBWMode  0: Color
 4: B&W 		 Sets the black and white mode  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stImg":{"nBWMode":0},"nChannel":0}]}}
  Image Settings
  Command    Values    Notes    Sample
 luminance  [0-23]  Sets the brightness level  http://192.168.5.126/ajaxcom?szCmd={"SetEnv": {"VideoParam":[{"stImg":{"luminance":0},"nChannel":0}]}}
 contrast  [0-14]  Sets the contrast level  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stImg":{"contrast":0},"nChannel":0}]}}
 sharpness  [0-15]  Sets the sharpness level  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stImg":{"sharpness":1},"nChannel":0}]}}
 gamma

 0: Default

 1:  0  .45

 2:   0.50
3:   0.55

 4:   0.63


 Sets the gamma level  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stImg":{"gamma":0},"nChannel":0}]}}
 dci  [0-8]  Sets the DCI level  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stImg":{"dci":0},"nChannel":0}]}}
 nFlipH  ON: 1
 OFF: 0 		 Flips the image horizontally  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stImg":{"nFlipH":3},"nChannel":0}]}}
 nFlipV  ON: 1
 OFF: 0 		 Flips the image vertically  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stImg":{"nFlipV":2},"nChannel":0}]}}
 nEZoom  ON: 1
 OFF: 0 		 Enables or disables digital zoom  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stImg":{"nEZoom":3},"nChannel":0}]}}
 nStyleInx  0: Default
1: Normal
2: Clarity
3: Bright
 4: Soft 		 Sets the image style  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stColor":{"nStyleInx":0},"nChannel":0}]}}
  Noise reduction Settings
  Command    Values    Notes    Sample
 noise2D  [0-8]  Sets the 2D noise reduction level  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stNR":{"noise2D":0},"nChannel":0}]}}
 noise3D  [0-8]  Sets the 3D noise reduction level  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stNR":{"noise3D":0},"nChannel":0}]}}
 dhotpixel  [0-5]  Sets the dynamic hot pixel correction level  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoParam":[{"stNR":{"dhotpixel":3},"nChannel":0}]}}
  OSD Settings
  Command    Values    Notes    Sample
 GET  See below  Gett all OSD parameters  http://192.168.5.126/ajaxcom?szCmd={"GetEnv":{"TTFFontSize":{"nChannel":-1}}}
 bAutoSize

 0: Off
1: On		 Enable / disable the auto sizing of the OSD  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"TTFFontSize":{"nFontSize":[48,48],"bAutoSize":1}}}
 nFontSize

  [8-200]   Sets the OSD size  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"TTFFontSize":{"nFontSize":[48,48],"bAutoSize":1}}}
 -  See below  Sets all OSD settings in one go

 http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoOsd":[{"stTime":{"bEnable":1,"nIndex":0,"nXPos":0,"szText":"","nYPos":10000, "stFtColor":{"byAlpha":128,"byRed":255,"byGreen":255,"byBlue":255},"stBkColor":{"byAlpha":0,"byRed":0,"byGreen":0,"byBlue":0}},"stTitle":{"bEnable":0,"nIndex":0,"nXPos":0,"szText":"","nYPos":0,"stFtColor":{"byAlpha":128,"byRed":255,"byGreen":255,"byBlue":255},"stBkColor":{"byAlpha":0,"byRed":0,"byGreen":0,"byBlue":0}},"nChannel":0}]}}

 bEnable  0: Not show
 1: Show 		 Show or hide time on OSD  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoOsd":[{"stTime":{"bEnable":1},"nChannel":0}]}}
 bEnable  0: Not show
 1: Show 		 Show or hide title on OSD  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoOsd":[{"stTitle":{"bEnable":1},"nChannel":0}]}}
 stFtColor  RGB: [0,0,0-255,255,255]
byAlpha:  [0-  128]		 Set font color for the time on OSD  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoOsd":[{"stTime":{"stFtColor":{"byAlpha":128,"byRed":255,"byGreen":255,"byBlue":0}},"nChannel":0}]}}
 stFtColor  RGB: [0,0,0-255,255,255]
byAlpha:  [0-  128]		 Set font color for the title on OSD  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoOsd":[{"stTitle":{"stFtColor":{"byAlpha":128,"byRed":255,"byGreen":255,"byBlue":0}},"nChannel":0}]}}
 nXPos  [0 - 10000]  Set X position offset for time on OSD  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoOsd":[{"stTime":{"nXPos":9200},"nChannel":0}]}}
 nXPos  [0 - 10000]  Set X position offset for title on OSD  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoOsd":[{"stTitle":{"nXPos":9200},"nChannel":0}]}}
 nYPos  [0 - 10000]  Set Y position offset for time on OSD  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoOsd":[{"stTime":{"nYPos":1200},"nChannel":0}]}}
 nYPos  [0 - 10000]  Set Y position offset for title on OSD  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoOsd":[{"stTitle":{"nYPos":1200},"nChannel":0}]}}
  Video Output Settings
  Command    Values    Notes    Sample
 nNetMode  -  default value 2, do not modify it! -
 emVoutFormat  10: 1080P60
9: 1080P50
4: 1080P30
3: 1080P25
8: 1080I60
7: 1080I50
6: 720P60
5: 720P50
26: 720P30
25: 720P25
20: 1080P59.94
21: 1080P29.97
22: 720P59.94
 23: 720P29.97 		 Sets the video output format

 http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"VideoOut":{"nNetMode":2,"emVoutFormat":9,"byFormatList":[10,9,4,3,8,7,6,5,26,25,20,21,22,23,24]}}}


  Network Settings
  Command    Values    Notes    Sample
 GET  See below Get the Ethernet settings  http://192.168.5.126/ajaxcom?szCmd={"GetEnv":{"NetWork":{"nChannel":-1}}}
 -  See below  Set all Network settings in one go  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stNetPort": {"wPortSoap":1936,"wPortData":3000,"wPortWeb":80,"wPortRtsp":554,"wPortVisca": 1259,"wPortOnvif":2000,"wPortRtmp":1935}}}}
 byValid  5: off
 7: on 		 Enables or disables DHCP  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stEth":[{"byValid":5}]}}}
 szIPAddr  user-defined  Sets the IP address  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stEth":[{"szIPAddr":"192.168.5.127"}]}}}
 szSubMask  user-defined  Sets the subnet mask  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stEth":[{"szSubMask":"255.255.255.0"}]}}}
 szGateway  user-defined  Sets the default gateway  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stEth":[{"szGateway":"192.168.5.1"}]}}}
 wPortSoap  [0-65535]  Sets the SOAP port  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stNetPort":{"wPortSoap":1936}}}}
 wPortData  [0-65535]  Sets the data port  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stNetPort":{"wPortData":3000}}}}
 wPortWeb  [0-65535]  Sets the web port  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stNetPort":{"wPortWeb":80}}}}
 wPortRtsp  [0-65535]  Sets the RTSP port  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stNetPort":{"wPortRtsp":554}}}}
 wPortRtmp  [0-65535]  Sets the RTMP port  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stNetPort":{"wPortRtmp":1935}}}}
 wPortVisca  [0-65535]  Sets the VISCA port  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stNetPort":{"wPortVisca":1259}}}}
 wPortOnvif  [0-65535]  Sets the ONVIF port  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stNetPort":{"wPortOnvif":2000}}}}
 szDns1  user-defined  Sets the preferred DNS server  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stDns":{"szDns1":"8.8.8.8"}}}}
 szDns2  user-defined  Sets the alternate DNS server  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stDns":{"szDns2":"8.8.8.8"}}}}
  NDI Settings
  Command    Values    Notes    Sample
 bNdiEnable  0: Off
 1: On 		 Enables or disables NDI functionality  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stNdi":{"bNdiEnable":1}}}}
 bNdiControlEnable  0: Off
 1: On 		 Enables or disables NDI control  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stNdi":{"bNdiControlEnable":1}}}}
 szNdiName  User-defined  Sets the NDI device name  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stNdi":{"szNdiName":"Avonic-82342"}}}}
 szNdiGroup  User-defined  Sets the NDI group name  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"NetWork":{"stNdi":{"szNdiGroup":"public"}}}}
  System Configure
  Command    Values    Notes    Sample
 GET  -  Retrieve the system configuration

 http://192.168.5.126/ajaxcom?szCmd={"GetEnv":{"SysAttr":{"nChannel":-1}}}


 szDevName  User-defined  Sets the device name  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysAttr":{"szDevName":"MyDevice"}}}
 szDeviceID  Cannot modify  Device ID  -
 nLanguage  0: Simplified Chinese
 2: English 		 Sets the interface language  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysAttr":{"nLanguage":2}}}
  License
 QueryLicenseState  None  Get License parameters  http://192.168.5.126/ajaxcom?szCmd={"QueryState":{"QueryLicenseState":{}}}
 bLicenseEnable  0: Disable
 1: Enable 		 Set License parameters  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"LicenseKey":{"bLicenseEnable":1,"szKeyText":"123456789"}}}
  Systime
 QuerySysTime  nChannel: -1  Retrieve system time parameters  http://192.168.5.126/ajaxcom?szCmd={"QueryState":{"QuerySysTime":{}}}
 nDateFormat  0: YYYY-MM-DD
1: MM-DD-YYYY
 2: DD-MM-YYYY 		 Sets the date format  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysTime":{"nDateFormat":0}}}
 nDateSprtr  0: .
1: -
 2: / 		 Sets the date separator  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysTime":{"nDateSprtr":0}}}
 nZone

 0: GMT

 1:   GMT+01:00

 2:   GMT+02:00

 3:   GMT+03:00

 4:   GMT+03:30

 5:   GMT+04:00

 6:   GMT+04:30

 7:   GMT+05:00

 13: GMT+08:00

 20: GMT-01:00

 31: GMT-11:00

 32:   GMT-12:00

 Sets the time zone  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysTime":{"nZone":0}}}
nDaylightSavings0: Off
1: On		Sets
DaylightSaving 		http://192.168.5.126/ajaxcom?szCmd= {"SetEnv":{"SysTime":{"DaylightSavings":1}}}
 nHourType  0: 24 Hours
 1: 12 Hours 		 Sets the hour type (24-hour or 12-hour format)  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysTime":{"nHourType":0}}}
 bEnable  0: Off
 1: On 		 Enables or disables NTP (Network Time Protocol)  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysTime":{"stNtp":{"bEnable":1}}}}
 nUpdateInterval  [1-10]  Sets the NTP update interval (in hours)  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysTime":{"stNtp":{"nUpdateInterval":2}}}}
 szHostUrl  User-defined NTP server address  Sets the NTP server URL  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysTime":{"stNtp":{"szHostUrl":"time.nist.gov"}}}}
 nHostPort  User-defined: [0-65535]  Sets the NTP server port  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysTime":{"stNtp":{"nHostPort":123}}}}
 bTimeType  1: Synchronize with computer time
 0: Set manually 		 Synchronizes the system time with the computer time or sets it manually  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"SetTime":{"bTimeType":1,"nZone":19,"stDateTime":{"dwYear":2018,"byHour":15,"byMinute":38,"byDay":1,"byMonth":11,"bySecond":2}}}}
 SyncNtp  -  Synchronizes with the NTP server  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"SyncNtp":""}}
  Sysuser
 szUserName  User-defined  Sets the user name  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysUser":{"stUsers":[{"szUserName":"admin","szPassword":"admin"}]}}}
 nUserType  0: Admin
 1: User 		 Sets the user type  http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"SysUser":{"stUsers":[{"nUserType":0,"szUserName":"admin","szPassword":"admin"}]}}}
  Firmware
 QueryVersion  -  Get update parameters  http://192.168.5.126/ajaxcom?szCmd={"QueryState":{"QueryVersion":{}}}



 Get the return value and split it like this:

szText.Format(“%d.%d.%d%d-%d-%d”,(stVersion.dwCamVersion>>16)&0xFF,(stVersion.dwCamVersion>>8)&0xFF, (stVersion.dwCamVersion0xFF),(stVersion.dwCamDate>>16)&0xFFFF,(stVersion.dwCamDate>>8)&0xFF, (stVersion.dwCamDate&0xFF));
  Defaults
 Default  -  Set camera to factory defaults  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"Default":{}}}
  Reboot
 Reboot  -  Reboots the camera  http://192.168.5.126/ajaxcom?szCmd={"SysCtrl":{"Reboot":{}}}
Tracking


Tracking mode0: Presenter
1: Conference
2: Tracking (No Zoom)
3: Hybrid
http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"MonoTracking":{"nTrackWay":2}}}
Tracking On/Off0: off
1: on
http://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"MonoTracking":{"bEnable":1}}}
Tracking Body Position0: Medium Shot
1: Close Up Shot
2: Wide Shot		defines the zoom level during Hybrid and Presenter tracking modehttp://192.168.5.126/ajaxcom?szCmd={"SetEnv":{"MonoTracking":{"nBodyPos":{"emBodyPosMod":0}}}}
Get Tracking Attributes

 http://192.168.5.126 /ajaxcom?szCmd={%22GetEnv%22:{%22MonoTracking%22:{%22nChannel%22:-1}}}
bEnable1:On
2:Off		Tracking on/offdefines tracking is on or off
emBodyPosMod0: Half Body
1: Close up
2: Full body		Tracking Body Positiondefines the zoom level during Hybrid and Presenter tracking mode
nTrackWay0: presenter
1: conference
2: track no zoom
3: hybride		tracking modedefines which tracking mode is used


To be processed (in PDF, not yet here):

wPortHttps

Title FontColor

Time FontColor

Show Time

Show Title

nAutoFlipV

hdr

bImageFreezing

emLowPowerMode
