Getting Started

To ensure a successful first-time setup of the Avonic CM-CON100 controller, follow these essential steps before attempting operation. Skipping these steps may result in communication failure or improper control of connected PTZ cameras.

  • Connect the power supply to the controller before connecting data cables.
  • Use the correct protocol (VISCA, Pelco-D, or Pelco-P) that matches the camera settings.
  • Ensure baudrate settings on the controller match those configured on the camera.
  • RS485 wiring must follow polarity strictly: A = +, B = –.
  • Maximum cable length for RS232 is 15 meters; RS485 can run up to 1200 meters with proper termination.

Table of Contents

Product Overview

The CM-CON100 controller provides precise PTZ control including pan, tilt, zoom, focus, preset management, and OSD access. The controller includes a multi-directional joystick, numeric keypad, function buttons, and an OLED display.

  • Control up to 255 cameras and 255 presets
  • Supported protocols: VISCA, Pelco-D, Pelco-P
  • Interfaces: RS232 and RS485
  • OLED screen with real-time feedback

Package Contents

QtyItemSKU
1PTZ Camera ControllerCM-CON100
1Power SupplyCM-CON100-PSU
  1. Verify package contents match the list above.
  2. Ensure controller is sealed and undamaged.
  3. Remove from packaging and prepare for installation.

Installation

Connection Options

  • RS232: Max 15 meters in daisy chain configuration
  • RS485: Up to 1200 meters in bus topology with termination

Connection example controller to PTZ camera

Wiring Overview

ConnectionWiresConnector Type
Power+12V DCJEITA female
RS232TX, RX, GND3-pin Phoenix
RS485+ (A), – (B)2-pin Phoenix
  1. Connect power adapter to controller and mains.
  2. Attach RS232 or RS485 cables to camera(s).
  3. Double-check RS485 polarity: A=+, B=–.

Wiring diagram

Operation

Power on the controller. Default USER PIN is 111111. Use number keys and press ENT to confirm.

Controller front viewController buttons

Button Functions

ButtonDescription
CAMERASelect camera ID
CALLRecall preset
SETSet or delete preset
F1/F2Toggle focus modes
SHIFTAccess secondary functions
MENUEnter OSD menu
ESCExit or cancel
ENTConfirm selection
JoystickPan/Tilt/Zoom/Focus control

Preset Management

Set Preset

  1. Move camera using joystick.
  2. Press a number key (0–255), then press SET.

Call Preset

  1. Press preset number, then press CALL.

Delete Preset

  1. Recall the preset, then press same number again.
  2. Hold SET until confirmation.

Focus and Zoom

You can toggle between Zoom and Manual Focus modes by:

  • Pressing the joystick button (toggle between modes)
  • Using F1/F2 keys (F2 for manual focus, F1 for zoom)

Zoom and focus functions

Setup Menu

Press SETUP and enter ADMIN PIN (111111) to access the setup menu. Use the joystick to navigate.

  • Camera Settings: ID, protocol, baudrate
  • Time: Set system clock
  • Volume: Buzzer (0–6)
  • Backlight: Button brightness
  • Sleep Mode: Auto-sleep timer
  • PIN: Change user/admin codes
  • Joystick Calibration: Recalibrate joystick
  • Factory Reset: Restore default settings
  • Information: View firmware version

Joystick Calibration

  1. Move joystick to all directions and zoom extremes.
  2. Press ENT at each limit.
  3. Choose SAVE or CANCEL and press ENT.

Setup Menu interface

OSD Menu

Press MENU to enter the camera’s OSD. Navigate as follows:

  1. Joystick Up/Down: Scroll
  2. Joystick Left/Right: Change values
  3. Press OPEN: Enter submenu
  4. Press CLOSE or ESC: Exit menu

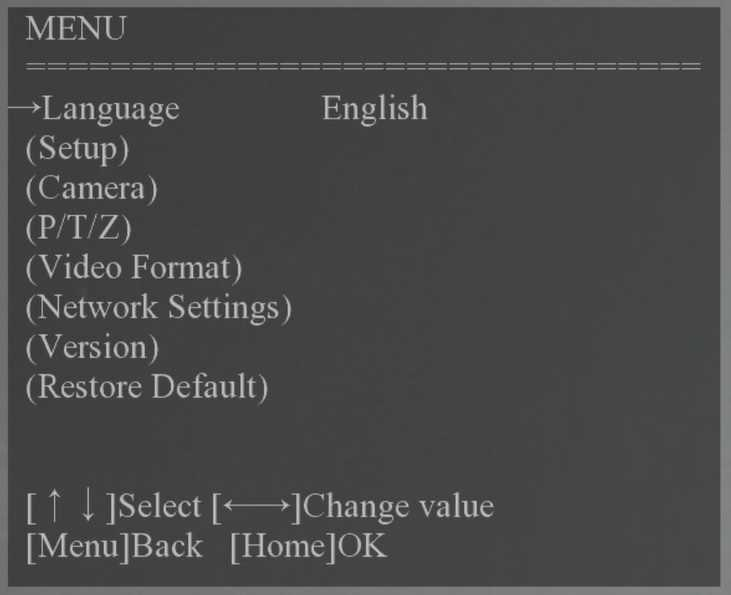

OSD Menu example

Troubleshooting

General Issues

  • Restart the controller
  • Perform factory reset if needed

No Power / Display

  • Check the power connection
  • Inspect power adapter and cable

Camera Not Responding

  • Check cabling and polarity
  • Verify protocol and baudrate
  • Ensure correct camera ID is selected

Connection Diagrams

RS232 ConnectionsRS485 ConnectionsController connection overviewPreset buttons
