VIDEO

Video enables you to configure your video settings, which includes encoder, streaming and camera settings.

VIDEO - Video Encoder

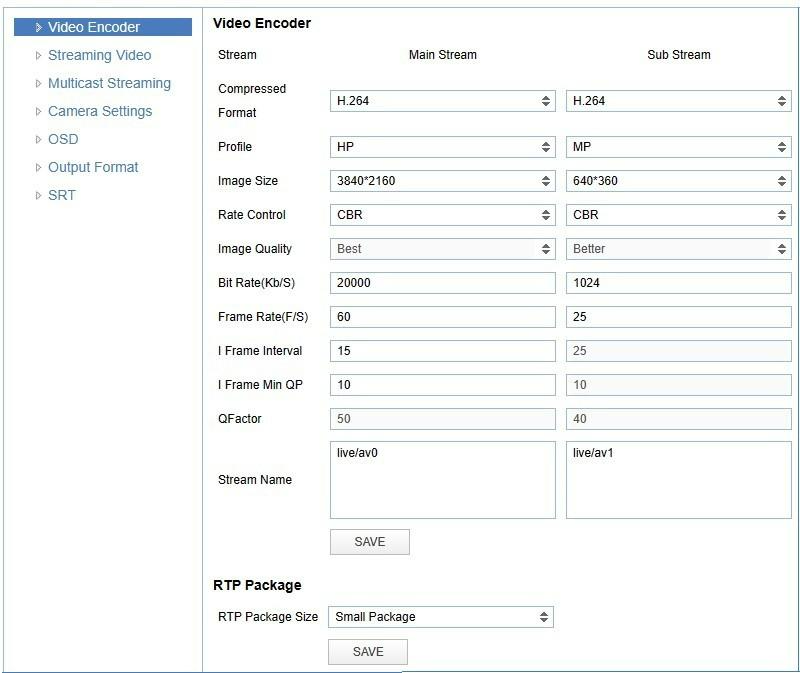

The Video Encoder settings are listed below.

Video Encoder OptionMain StreamSub Stream
Compressed FormatMJPEG / H.264 / H.265MJPEG / H.264 / H.265
ProfileBP / MP / HPBP / MP / HP
Image Size3840x2160 / 1920x1080 / 1280x7201920x1080 / 1280x720 / 720x480 / 640x480 / 640x360 / 320x240
Rate ControlCBR (constant bit rate) / VBR (variable bit rate) depending on format
Image QualityFixed at ‘best’Fixed at ‘better’
Bit Rate (Kb/s)64–8192064–5120
Frame Rate (F/s)5–60 frames per second5–30 frames per second
I Frame Interval1–3001–150
I Frame Min. QP10–5110–51
QFactor5040
Stream Namelive/av0live/av1


Video Encoder OptionMain StreamSub Stream
RTSP Linkrtsp://<ip-address>/live/av0rtsp://<ip-address>/live/av1
RTP PackageSmall Package (standard MTU size, 1500 bytes), Big Package (approx. 60kb MTU size)


Saving settings for NDI

NDI uses the Main Stream of the camera. Execute the following steps to save your settings:

  1. Click SAVE to apply your settings. A small confirmation dialogue appears in the bottom right corner.
  2. Reboot the camera if you changed RTP package.

VIDEO - Streaming Video

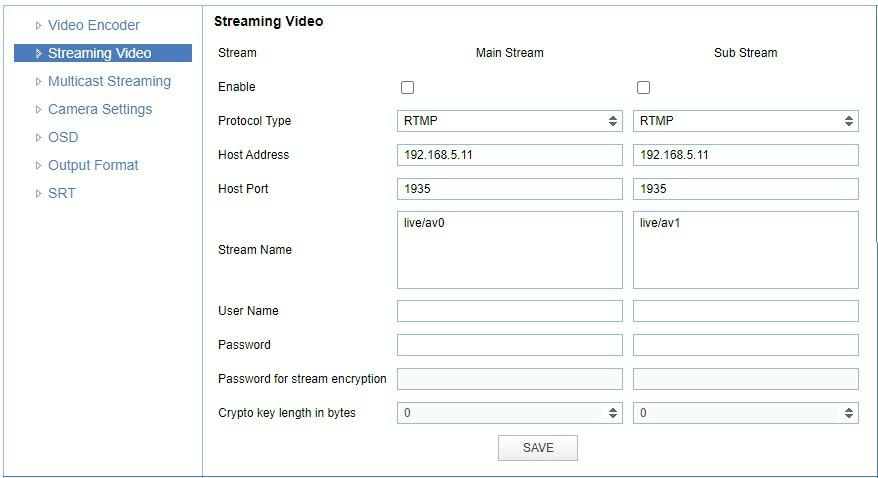

Figure 20: WebGUI > VIDEO > Streaming Video

The recommended Streaming Video settings are listed below. See for more Streaming on the website.


Stream Option

Main Stream

Sub Stream

Enable

Mark checkbox to enable

Mark checkbox to enable

Protocol Type

RTMP, SRT

RTMP, SRT

Host Address

192.168.5.11

192.168.5.11

Host Port

1935

1935

Stream Name

live/av0

live/av1

User Name

Empty is default setting

Empty is default setting

Password

Empty is default setting

Empty is default setting

Password for stream encryption*

Empty is default setting

Empty is default setting

Crypto Key Length in bytes

0, 16, 24, 32

0, 16, 24, 32


Execute the following steps to save your settings:

  1. Mark the checkbox to enable and select RTMP or SRT as Protocol Type. You need an optional license if you want to use SRT.

  2. (* in the table ) Enter a value for Password for stream encryption if the selected Protocol Type is "SRT". This is the Caller Mode. For the Listener Mode see Video - SRT.

  3. Change the Host Address to the IP address of the camera.

  4. Click SAVE to apply your settings. A small confirmation dialogue appears in the bottom right corner.

  5. Start a video streaming application like VLC mediaplayer, Daum Potplayer etc.

  6. At Media > Open Network stream >Network type rtmp//192.168.5.11/live/av0 or rtsp//192/168.5.11/ live/av0 (or live/av1 if you use the substream) and click Play.

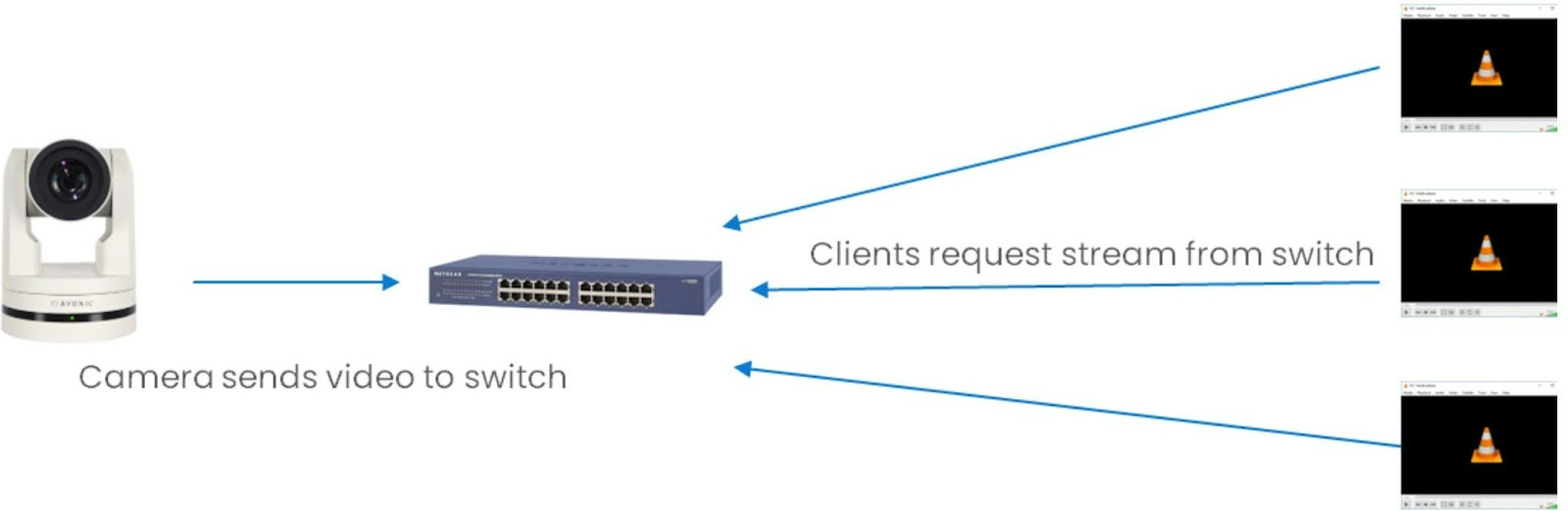

VIDEO              -              Multicast              Streaming If you intend to stream your live video to a group of hosts within a network, multicast streaming is the suggested method. Multicast streaming permits the transmission of data (video) to a group of hosts in a network concurrently, with minimal network traffic. To achieve this, you will require a switch that supports multicast streaming to transmit the video stream. Additionally, clients need to be connected to this multicast switch to request the video stream from it. See the picture below:

Next to multicast, there is also unicast allowing you to stream video (via RTSP) to one single users IP address. For more information read also Unicast, Multicast and Broadcast on the website.

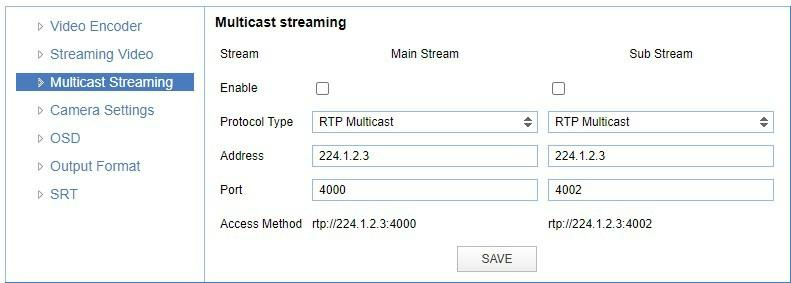

Figure 21: WebGUI > VIDEO > Multicast Streaming

The recommended Multicast Streaming settings are listed below.

Stream Option    Main Stream    Sub Stream

Enable    Mark checkbox to enable/ disable    Mark checkbox to enable/ disable

Protocol Type    RTP Multicast/ TS Multicast/ TS Unicast    RTP/ TS Multicast/ TS Unicast

Address (multicast)    224.0.0.0~ 239.255.255.255    224.0.0.0~ 239.255.255.255

Address (unicast)    Specify the IP address to which you want the Unicast stream pushed.

Port    4000 (default)    4002 (default)

Access Method    rtp://224.1.2.3:4000    rtp://224.1.2.3:4002


    Click SAVE to apply your settings. A small confirmation dialogue appears in the bottom right corner.
